d Pre-Pro Assembly: Systems for commercial trailers


BASIC ABS BRAKE SYSTEMS

SIDE CONTROL ABS
AXLE CONTROL ABS
AXLE CONTROL ABS FOR TRAILERS WITH SELF STEER, AND LIFT AXLES
SYSTEMS FOR PULL TRAILERS WITH SPRING BRAKES ON REAR AXLES
SYSTEMS FOR WEST COAST AGRICULTURE TRAILERS
CONVERTER DOLLY SYSTEMS
FMVS121 EXEMPT SYSTEMS WITH SPRING BRAKE CHAMBERS
FMVS121 EXEMPT SYSTEMS WITH SERVICE CHAMBERS
BRAKE SYSTEM PAK ADDITIONS
AIR RIDE OUTLETS
TOWING SEMI-TRAILER ADDITIONS
AXLE ADDITIONS FOR BRAKE SYSTEMS WITH SPRING BRAKE CHAMBERS
AXLE ADDITIONS FOR BRAKE SYSTEMS WITH SERVICE CHAMBERS

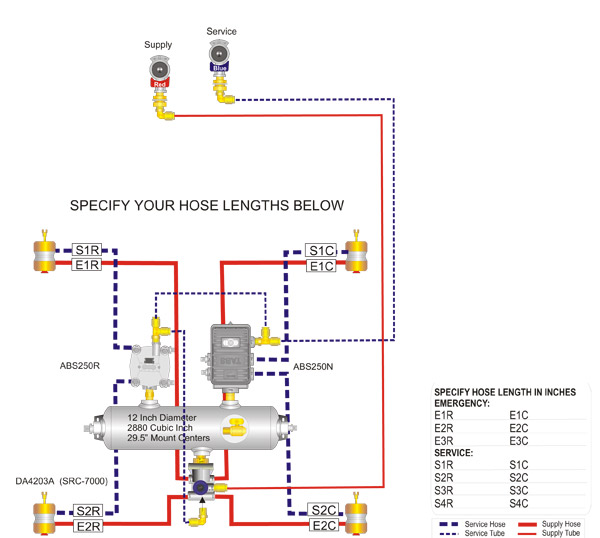

2 Axle 2S2M SIDE BY SIDE BENDIX TABS 6

PART #: PAK2S2MS-2-B1

Contents: Glad hand assemblies
Air tank with installed drain valve and plugged unused ports
Air tank mounting kit with pads, bolts, washers and lock nuts
Brake valve(s) are installed and include push to connect fittings
Hoses with swivel hose ends are installed to valve(s)
Two speed sensors, sensor bushings and sensor extensions
Hose separators and sensor cable retainers

Specifications:
Hoses meet J1402 & JT106 specifications and are 3/8 ID unless otherwise noted. Reservoirs meet J10B specifications.
Pipe fittings are brass or plated SH80 steel. Push-in style 3/8 tube fittings standard. ABS Electronics pre-tested before shipment.

Optional Systems:
